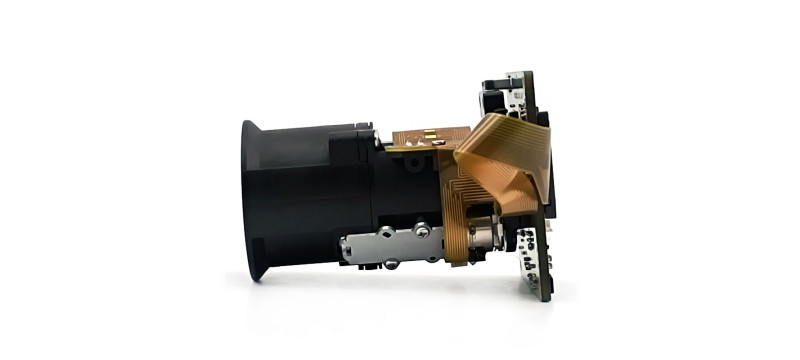

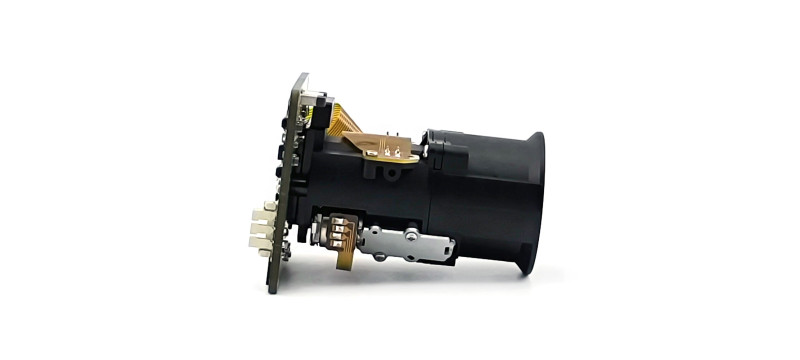

8M Zoom 3x USB Camera Module - ZCM8M30M30QX3

產品描述

ZCM8M30M30QX3 是一款 8 兆像素 USB 2.0 相機模組，配備 3 倍光學電動變焦鏡頭。它還內建混合變焦功能，結合了光學變焦和數位變焦，最高可達 5 倍放大倍率。

放大倍率可透過標準 UVC 介面進行調整。如果需要更高的影像放大倍率，還可以使用 OpenCV 等軟體進行額外的數位變焦。

Technical Information:

Model	ZCM8M30M30QX3
Sensor	Sony 4K Image Sensor
Image Size	1/2.8 inch
Image Pixels & Resolution	8M / 3840(H) × 2160(V)
Image Formats	MJPEG / YUY2(YUYV)
Frame Rate	3840(H) × 2160(V) MJPG @ 30fps 1920(H) × 1080(V) MJPG @ 60fps 1280(H) × 720(V) MJPG @ 30fps 640(H) × 480(V) MJPG @ 30fps 1920(H) × 1080(V) YUY2 @ 5fps 1280(H) × 720(V) YUY2 @ 10fps
Shutter Type	Rolling shutter
Connecting Port	USB 2.0 Type-C
Operating Temperature	-20 ~ 50°C
Power Supply	USB bus power
Operation Voltage	DC 5V
Operating Current	350mA
Weight	35g
Operating System	WinXP / Win7 / Win8 / Win10 / Win11 Linux 2.6 or above

Note:
預估交期為14-21天。如需查詢詳細交期，請聯絡我們。

8M Zoom 3x USB Camera Module - ZCM8M30M30QX3

FEATURES

- Sony 4K Image Sensor
- 8MP (3840x2160) USB 2.0 interface
- PCBA Dimensions: 38x38mm
- 3x Optical Zoom in capability
- Built in 2x Digital Zoom in capability
- UVC support
- Focus software Adjustable

- FL 3.5mm ~ FL11mm

- Plug&Play for Windows and Linux
