60m 高精度雷射測距模組 - LRF60M3PS
PS Series
LRF60M3PS是一款使用相位偏移技術的精密雷射測距模組，提供±3mm的精度。它設計用於室內測量約60公尺的距離，室外測量約40公尺。其小巧輕便的特性使OEM用戶能夠方便地將其整合到系統和設備中。
請注意，LRF60M3PS專為室內測量設計。在室外環境中，陽光會影響其性能導致降低測量能力。在模組和目標物無陽光直射且目標物反射率高於80%的情況下，最遠極限可測量30公尺。
Functions
- Single Measurement
- Continuous Measurement
- Fast/Slow/Auto Mode
- Address Setting
- Offset Setting
- Laser ON/OFF
Technical Information
| Model Name | LRF60M3PS |
| Measurement Range | 0.03 ~ 60m (Indoor) |
| Measurement Frequency | 3 Hz |
| Measurement Accuracy | ±3.0mm @ 25°C |
| Wavelength | 650 nm |
| Laser Safety | Class 2 |
| Communication Interface | TTL (UART) |
| Input Voltage | 3.3V DC |
| Operating Current | 80mA |
| Dimensions | 50 x 26 x 14mm |
| Weight | 10g |
| Operating Temperature | 0 ~ 40 °C |

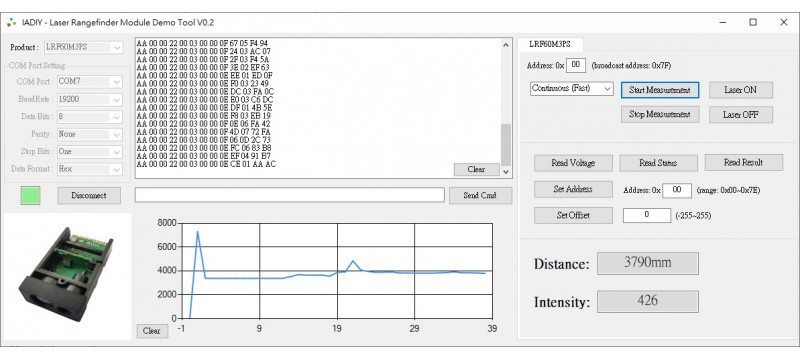

Demo Tool Download
Sample Code
LRF60M3PS Sample Code for Python
LRF60M3PS Sample Code for Arduino
Note:
For customization or mass production purchases, please contact us.
60m 高精度雷射測距模組 - LRF60M3PS
樣品價格 NT$1,550
10 件(含)以上NT$1,395
50 件(含)以上NT$1,302
200 件(含)以上NT$1,085
- 交期預估: 可供貨, 5~14 天
- 產品型號: LRF60M3PS
