100m 水下綠光雷射測具模組 - LRF100M3PSG
PS Series

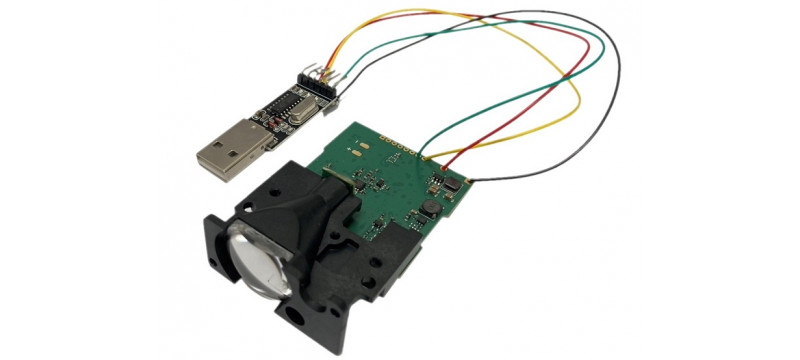

The LRF100M3PSG is a laser rangefinder module product that has been modified from the LRF100M3PS for underwater measurement applications. It uses a 520nm green laser as the emission source due to the excellent penetration of green light through water. This module can be used for measuring water depth and distances underwater.
Functions
- Single Measurement
- Continuous Measurement
- Fast/Slow/Auto Mode
- Address Setting
- Offset Setting
- Laser ON/OFF
Technical Information
| Model Name | LRF100M3PSG |
| Measurement Range | 0.03 ~ 100m (Indoor) 0.03 ~ 40m (Outdoor) |
| Measurement Frequency | 3 Hz |
| Measurement Accuracy | ±3.0mm @ 25°C |
| Wavelength | 520 nm |
| Laser Safety | Class 2 |
| Communication Interface | TTL (UART) |
| Input Voltage | 3.3V DC |
| Operating Current | 90mA |
| Dimensions | 64 x 40 x 18mm |
| Weight | 13±1g |
| Operating Temperature | 0 ~ 40 °C |
Demo Tool Download
Sample Code
LRF100M3PSG Sample Code for Python
LRF100M3PSG Sample Code for Arduino
Note:
We also provide gyroscope integrated versions with angle and height measurement function.
If you need please feel free to contact us.
100m 水下綠光雷射測具模組 - LRF100M3PSG
樣品價格 NT$3,575
10 件(含)以上NT$2,925
50 件(含)以上NT$2,470
- 交期預估: 可供貨, 7~21 Days
- 產品型號: LRF100M3PSG
