光學目鏡式遠距離雷射測距模組 - LRFX00M3LSP
LS Series
LRFX00M3LSV是一款整合光學目鏡的雷射測距模組，提供最大量測能力800、1500與3000公尺不同距離的型號。一般測距搭配的瞄準雷射在戶外200公尺以上瞄準雷射就幾乎不可見，但LRFX00M3LSV搭配光學目鏡可在更遠距離下仍實現精準瞄準，該模組還具備角度感測功能，可用於計算目標高度或水平距離。
Functions
- Single Measurement
- Continuous Measurement
- Aiming Laser ON/OFF
- Angle Detection
- Baudrate Setting
- Optical Viewfinder
Technical Information
| Model Name | LRF800M3LSV / LRF1500M3LSV / LRF3000M3LSV |
| Max Range | ≥800m / ≥1500m / ≥3000m |
| Min Range | ≥5m |
| Measurement Accuracy | <100m: ±1m ≥100m: ±(1+Dx0.25%)m, D=distance |
| Measurement Frequency | ≥1~3Hz |
| Detection Probability | ≥98% |
| False Alarm Rate | ≤1% |
| Wavelength | 905 nm |
| Beam Divergence | ≥4mrad |
| Laser Safety | Class 1 |
| Communication Interface | 3.3V TTL (UART) |
| Input Voltage | DC 3.3V±0.3V |
| Standby Power Consumption | ≤250mW |
| Operating Power Consumption | ≤500mW |
| Dimensions | 115 x 75 x 35mm |
| Weight | ≤95g |
| Operating Temperature | -20°C~50°C |

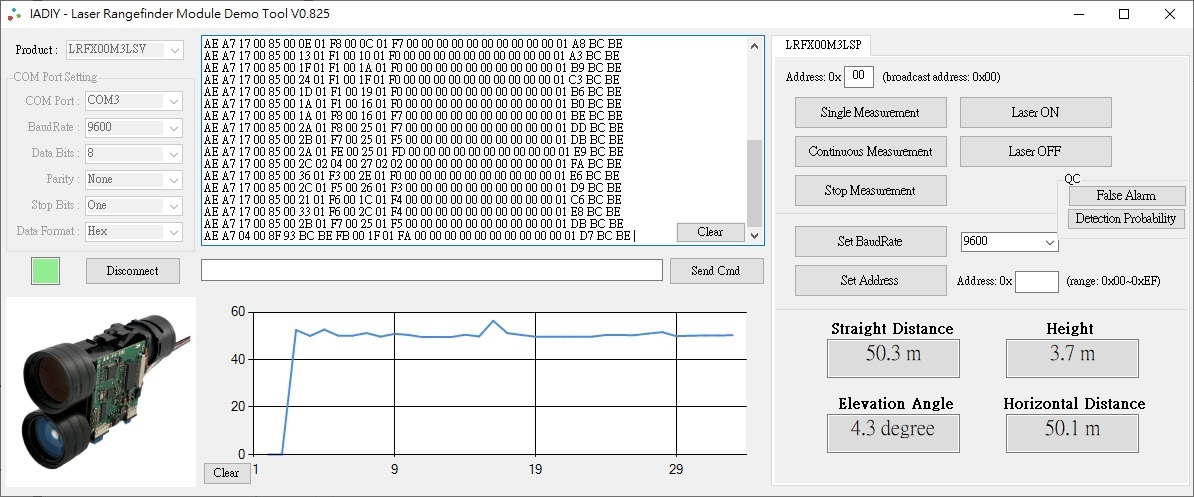

Demo Tool Download
Sample Code
LRFX00M3LSV Sample Code for Python
LRFX00M3LSV Sample Code for Arduino
Note:
For customization or mass production purchases, please contact us.
光學目鏡式遠距離雷射測距模組 - LRFX00M3LSP
樣品價格 NT$8,640
5 件(含)以上NT$8,192
10 件(含)以上NT$7,200
50 件(含)以上NT$6,336
100 件(含)以上NT$5,696
- 交期預估: 可供貨, 7~21 天
- 產品型號: LRFX00M3LSV
